How To Start Carton Box Manufacturing Business?
More and more customers are looking into starting their own cardboard carton box factories. As an old Chinese saying goes: Sharp tools make good work.
So for customers who want to open a carton factory, the selection of equipment is a very important part, which is related to the customer's budget, output and capacity of the carton factory. However, many customers have not been involved in the field of carton machinery before, and are confused by the wide variety of carton machinery.
In view of this, we Kading Machinery have prepared this guide for these customers, which can help you have a preliminary understanding of carton machinery and help you choose equipment with a clear purpose.
If you already have clear requirement, click here to get quotation sheet.
Click One of the Below Chapters to Jump Directly to the Target Page
Part 1: What are the basic carton machinery in a carton factory?
Usually It is Equipped with a Stacking Machine
Print, slot, or die cut 3/5/7 layers corrugated cardboard with thickness of 1.5-12mm to form the outline of the carton box.
According to the working speed and price of the machine, it can be divided into(based on small printing roller):
High speed machine(300-350 sheets/minute);
Medium speed machine(250-300 sheets/);
Low speed machine (100-150 sheets/minute);
Chain feeding machine (60-90 sheets/minute)
According to the fineness of printing, the printing department can be divided into three configurations:
Ceramic anilox roller + doctor blade: suitable for printing high-resolution pictures, such as pictures with QR codes;
Ceramic anilox roller + rubber ink roller: suitable for printing colorful and high-saturation pictures, such as pictures with flowers and portraits;
Metal anilox roller + rubber ink roller: suitable for printing simple patterns with low precision requirements and large area color filling, such as the pattern style of solid color background with simple text description on some ordinary daily necessities packaging cartons.
When in use, stacking machine needs to be placed behind the printing slotting die cutting machine to collect and stack the processed cardboard for easy transportation by workers.

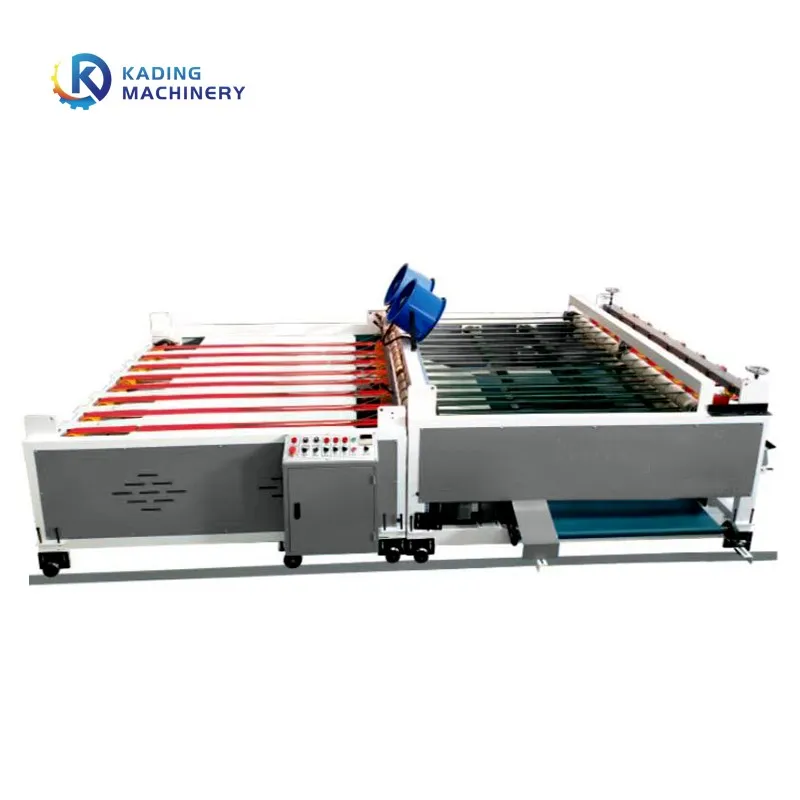

There are two types of stacking machines, one is a gantry stacking machine for processing large cartons, and the other is small stacking machine suitable for collecting small cartons.
Customers can choose the above configuration according to their needs, or contact us to get further support.
Form the Slotted or Die Cut Cardboard into Folded Cartons
Automatic stitching folder gluer
Semi auto stitching machine
Semi auto folder gluer
pressure folder gluer
long arm servo stitcher
Carton stitching machine:Use metal nails to nail the cardboard then form it into a carton. The nail distance and nails distance can be adjusted as needed to meet the requirements of different carton specifications and strength.
It is divided into fully automatic and semi-automatic types. The fully automatic type has a higher production speed and can efficiently complete a large number of carton nailing work.
Carton gluing machine:Working principle is the same as stitching machine, except that it uses glue to bond cardboard. Also divided into semi-automatic type and fully automatic type.
According to the type of carton, it can be divided into general carton gluer and pressure type carton gluer. General carton gluer is mainly suitable for home appliances, express delivery outer box packaging, mainly for corrugated paper packaging.
In addition to corrugated paper boxes, pressure type carton gluer is also suitable for paper boxes other than corrugated paperboard, such as small paper boxes, color paper boxes, special-shaped color boxes, look-bottom paper boxes, etc., with a wider range of applications.
Strap the Stitched or Glued Cartons
The strapping machine is used to strap the stitched or glued folded cartons, and bundle them into piles for workers to carry and transport.
According to the different strapping materials, it can be divided into PP strapping machine and PE strapping machine.
They are also divided into fully automatic and semi-automatic types. The fully automatic strapping machine can be used in line with the fully automatic folder gluer stitching machine.
Cut Cardboard In Appropriate Size
Thin blade slitter scorer machine is used to cut and crease cardboard. When the cardboard is too large, slitter scorer is needed to adjust the size of it.
According to the different paper feeding methods, it can be divided into manual paper feeding, belt paper feeding, and front edge paper feeding.
According to the degree of automation, it can be divided into semi-automatic, fully automatic, and full servo types.
The above are some of the equipment that a carton factory should have in the early stage. If you have selected the appropriate machine, please send us an inquiry immediately and we will prepare a detailed quotation for you.
Part 2: Diverse carton machinery solutions
Automatic Printer Slotter Die Cutter + Automatic Folder Gluer Stitching Machine + Automatic Strapping Machine
The reason why we chose it as the first solution is that it is the most popular and widely used among our customers.
Workflow:
The corrugated cardboard is fed into the automatic printing slotting die cutting machine, and after processing, it is stacked by the stacking machine.
Then the workers put the stacked cardboard into the automatic folder gluer stitching machine to process it into cartons.
Since the automatic folder gluer stitching machine and automatic strapping machine can work together as a linkage line, the processed cardboard will go directly into strapping machine, and the worker only needs to collect it at the strapping machine output.
Compared with Solution two, its cost is relatively low, and it is more suitable for the small and medium-sized carton factories.
Labor Required:
Automatic printer slotter die cutter: About 2-3 workers
Auto folder gluer stitching machine: About 2-3 workers
Auto thin blade slitter scorer machine: 1-2 workers
For detailed configuration list, please feel free to contact our salesteam.
Flexo Folder Gluer Line with Auto Strapping Machine
The workflow of this solution is similar to Solution one, but the difference is that all machines work together as a whole production line.
This is the solution with the highest automation degree. The entire production line only requires about 3 workers to operate normally.
If need to increase the automation degree and work efficiency, you can also add a fully automatic paper feeder in front of the automatic printing machine (solution one can also be added).
However, the cost will be higher than solution one. But if you pay more attention to labor costs and work efficiency, this option is a better choice.
All Semi Automatic Machines
This solution is suitable for carton factory customers who are just starting out and have limited budget.
All machines are semi-automatic, work efficiency depends largely on the proficiency of workers, but it is more economical in price, simpler to operate, and less demanding on workers.
Labor Required:
Chain feeding printer slotter die cutter: 2 workers
Semi automatic folder gluer/stitching machine: 2 workers
Semi-auto strapping machine: 1-2 workers
Semi-auto thin blade slitter scorer machine: 2 workers
The above are three common solutions. You can also mix fully automatic machines and semi-automatic machines.
If you already have a solution, please feel free to send us an inquiry to get a quote and more detailed technical information!
Part 3: What info should I provide if I want to get quote?
Each machine has a size limit, which means that one machine cannot make cartons of all sizes,it is customized according to your needs for cartons.
So if you want to get a quote, we need to know the following necessary information:
1. What is your maximum cardboard size (length*width) or maximum carton size (length*width*height)?
2. How many colors do you need to print?
However, we have corrugated cardboard sizes that commonly used by our other customers are as follows for your reference:
900x2000mm
1200x2200mm
1200x2400mm
1400x2400mm
1400x2800mm
1600x2400mm
1600x2800mm
If you already have these information, send us an inquiry and we will provide you with a detailed machine solution.
